How Solar DC Isolators Fail and How to Prevent It

Solar DC isolators play a critical role in every rooftop or commercial solar system. They disconnect the DC side safely during maintenance or emergencies and protect both the system and the people working on it. When a DC isolator fails, it often leads to dangerous outcomes such as overheating, insulation melting, or even complete fire incidents. Because of this, understanding why these failures happen and what steps keep the isolator safe is extremely important for system owners, installers, and maintenance teams.

Understanding the Role of a Solar DC Isolator

A solar DC isolator sits between the solar panels and the inverter. Its purpose is simple: cut off the DC power so that the system can be serviced without electrical risk. Even though it is a small component, the isolator handles high DC voltage and constant heat, which means any small weakness can quickly turn into a major failure.

How Solar DC Isolators Fail

Water Ingress and Moisture Damage

Why water gets inside

Outdoor isolators are exposed to rain, dust, humidity, and temperature changes. If the enclosure is not sealed properly or if the rubber gaskets weaken over time, moisture finds its way inside. Once moisture reaches the internal contacts, it reacts with heat and creates corrosion.

How this leads to failure

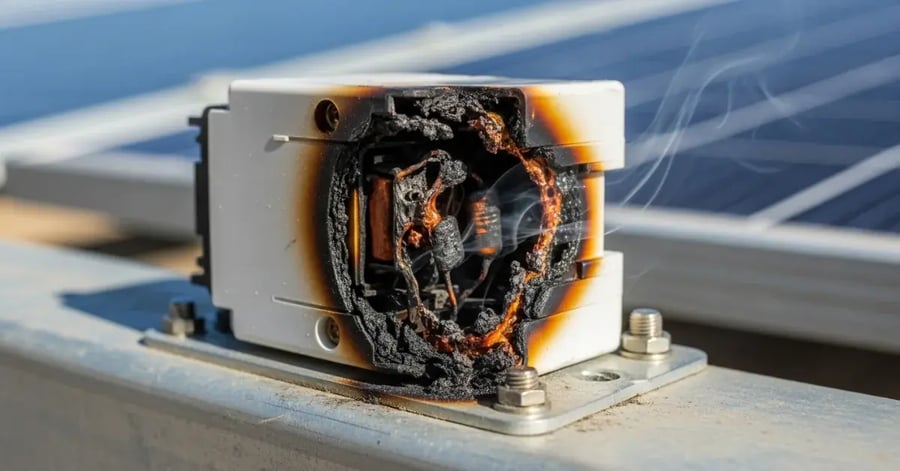

Corrosion increases resistance on the terminals, and higher resistance generates more heat. Over time, the internal metal parts start burning or melting. In many cases, isolators with moisture damage produce a burning smell, discoloration, or visible charring around the cable entry points.

Poor Installation Practices

Loose or poorly tightened connections

If the terminal screws are not tightened to the correct torque, the cable does not sit firmly inside the isolator. This loose contact creates electrical arcing. Arcing is extremely dangerous on DC circuits because it does not break easily and keeps burning until something fails.

Incorrect cable entry or routing

Sometimes installers push cables through the glands at sharp angles. This weakens the waterproof seal and allows moisture to enter later. In other cases, the cable size does not match the terminal size, causing poor contact and long-term overheating.

Low Quality or Non-Compliant Isolators

Material weakness

Cheap isolators often use plastic that cannot tolerate continuous heat. Over time, sunlight and ambient heat make the enclosure brittle. Once the body cracks even slightly, water enters, and the cycle of corrosion begins.

Electrical limits

If the isolator is not rated correctly for high DC voltage, the switch components eventually break down. Many failures occur when isolators are used too close to their maximum rating, especially on high-voltage string systems above 600V.

Continuous UV Exposure and Heat Stress

Environmental stress

Isolators mounted on open rooftops face intense sunlight, high temperatures, and long summer seasons. UV exposure gradually weakens the enclosure and the internal insulation. Heat also accelerates the ageing of rubber seals, making the isolator more vulnerable to moisture.

Internal overheating

Inside the isolator, even a small amount of resistance creates heat. When this heat combines with outdoor temperature, the isolator becomes even more stressed. Over time, the risk of thermal runaway increases, especially in older systems.

Infrequent or Poor Maintenance

Dust buildup and wear

Over the years, dust, insects, or corrosion can collect inside the isolator—especially if seals weaken. This buildup affects the movement of the switch and increases electrical resistance. Many isolators fail simply because they were never inspected after installation.

Lack of functional testing

A DC isolator is a mechanical device. If it is never tested or switched on/off during yearly inspections, the internal contacts may seize or become faulty without anyone noticing.

How to Prevent Solar DC Isolator Failures

Choose High-Quality, Fully Certified Isolators

Use isolators that meet international standards such as IEC 60947-3 or AS/NZS 60947. Certified isolators are designed to withstand heat, UV exposure, and continuous DC load. They also have stronger enclosures, better sealing, and more reliable internal contact mechanisms.

Ensure Correct Installation From Day One

Proper tightening of terminals

Installers should follow the torque values provided by the manufacturer. Tightening by hand is not reliable because DC connections require consistent and firm pressure.

Correct use of cable glands

Cable glands should match the cable size and should be positioned straight, not at sharp angles. This ensures the seal remains tight for years and blocks moisture.

Mount Isolators in Protected Locations

Whenever possible, isolators should be installed under shade, inside enclosures, or on walls that receive less direct sunlight. Reducing heat and UV exposure significantly increases the lifespan of the isolator.

Perform Regular Inspections and Testing

A visual inspection every 12 months can catch early signs of failure. This includes checking for discoloration, cracks, melted plastic, rust, or loose gland fittings. During maintenance, the switch should be operated to ensure it moves freely and makes full contact.

Replace Any Aged or Damaged Isolators Immediately

If an isolator shows burn marks, unusual heat, or signs of moisture, it must be replaced. Continuing to operate a damaged isolator increases the risk of fire and system breakdown.

Conclusion

Solar DC isolator failures are almost always preventable when the system is designed well, installed correctly, and maintained regularly. Most failures begin with simple issues like moisture, loose terminals, or heat stress, and gradually turn into major hazards. Using high-quality isolators, protecting them from weather, and performing yearly checks ensures the system remains safe, reliable, and efficient for many years. This approach not only prevents expensive repairs but also protects the entire solar installation from avoidable risks.
